Description:

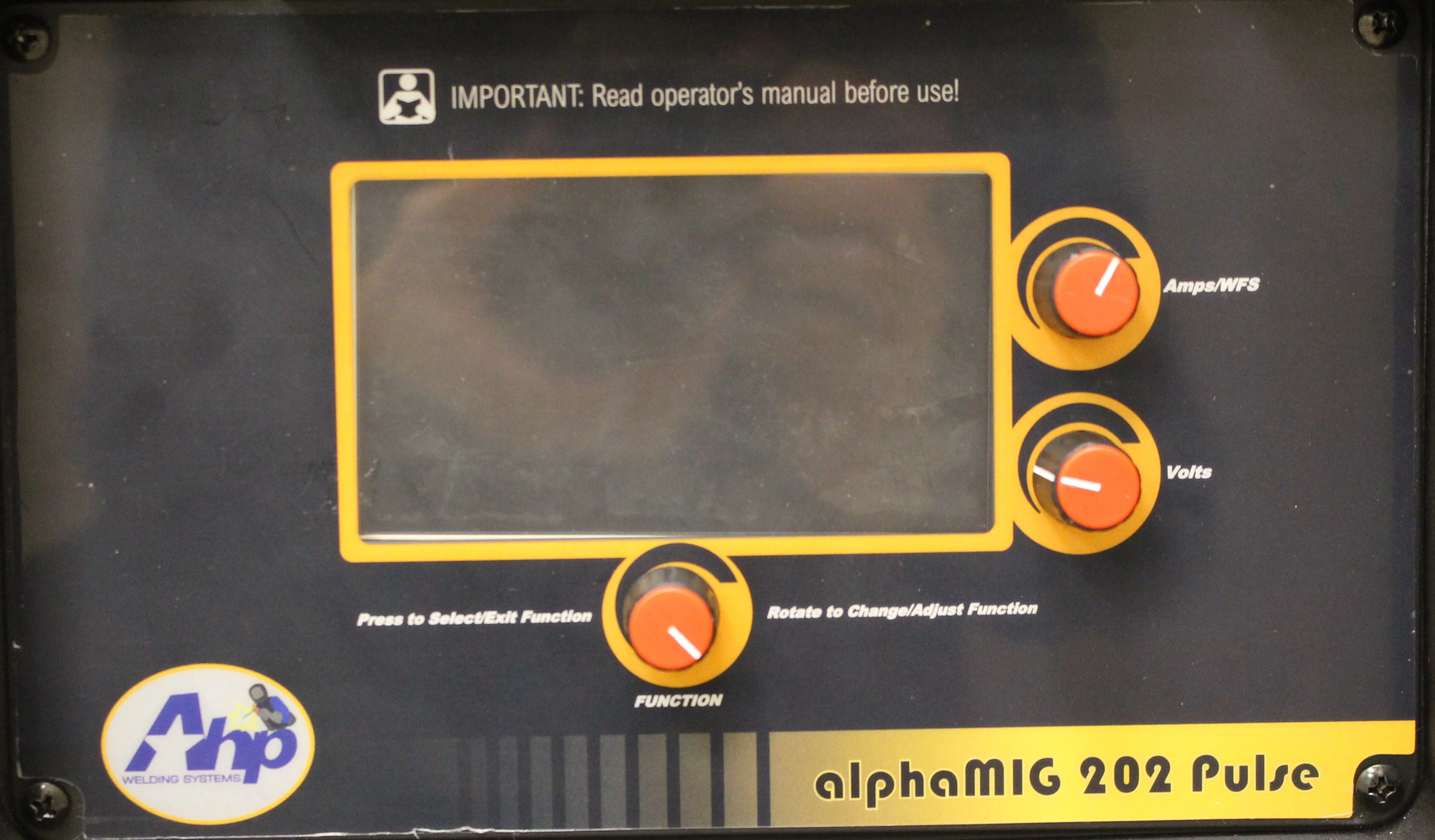

The new AlphaMIG 202 Pulse

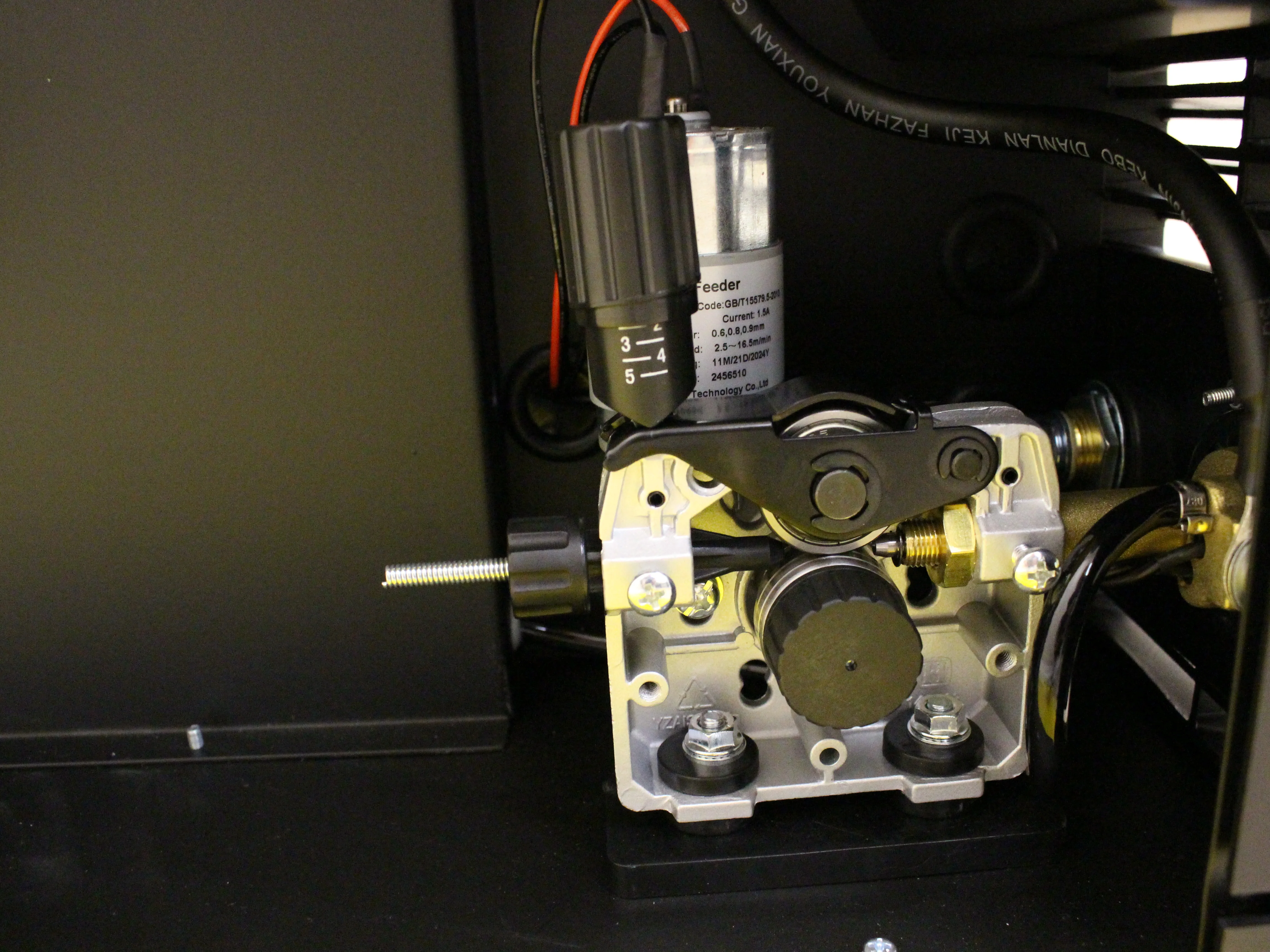

The unit can hold up either a 4" or 8" spool for most common wire sizes from .023" to .035" diameter.

The AlphaMIG 202P is a single and double (pulse on pulse/twin) pulse MIG with advanced operating capabilities.  The unit is perfect for many types of applications requiring pulse.

The unit also includes DC TIG and Stick functions for a well rounded shop unit.

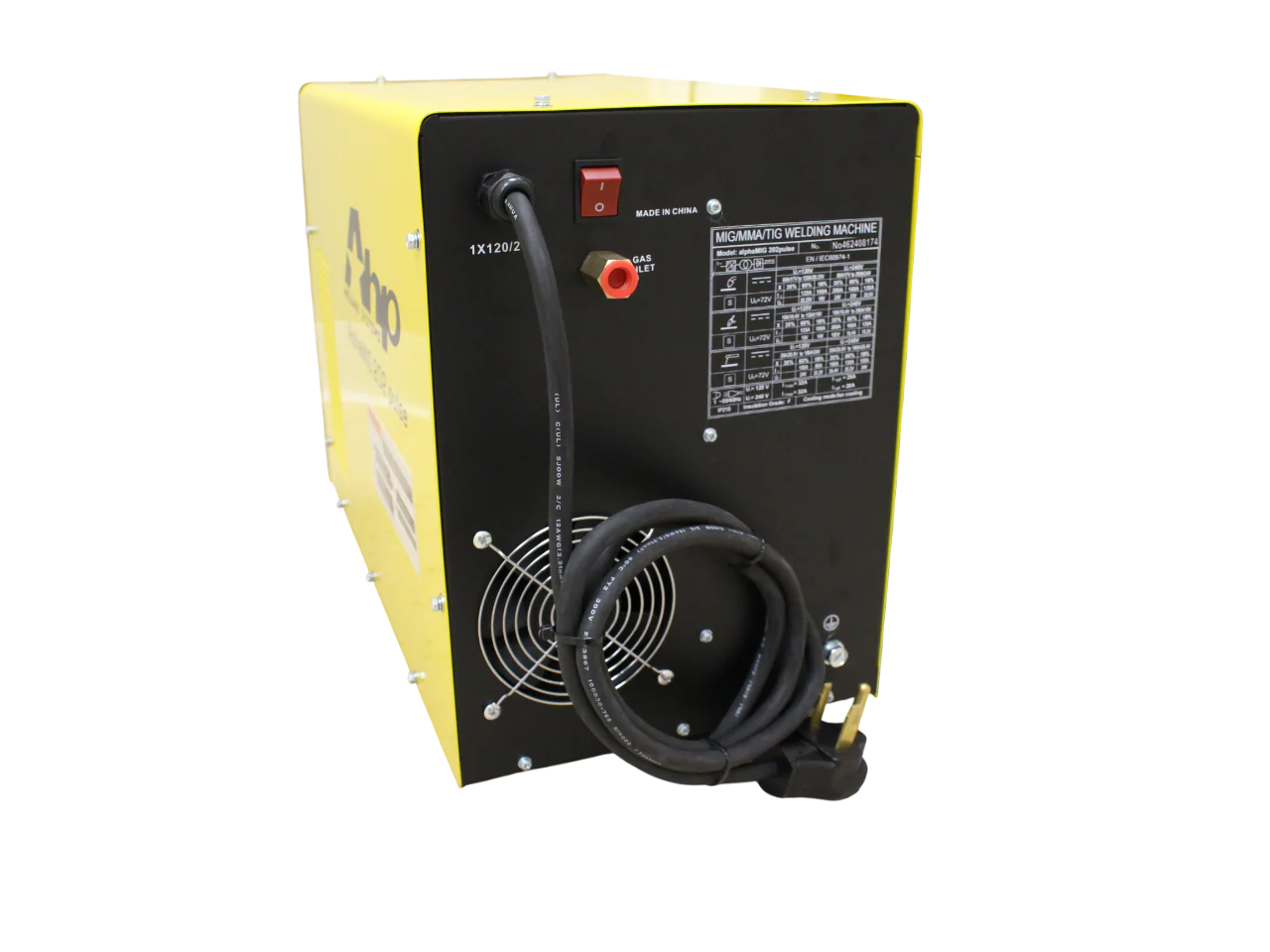

Input Voltage: 120/240V 50/60Hz

OCV: 72V

120V Rated Input: 32A

240V Rated Input: 32A

Wire Capacity (Diameter)

MIG:

Aluminum: 1.0mm (.040") and 1.2mm (.045, .047 or 3/64")

Steel/Stainless:  .8mm (.030") and .9mm (.035")

Spool Gun Compatible (Optional purchase)

Output Range 120V: 20-125A/14-21V (Pulse). Minimum output for non-pulse= 60A

Duty Cycle Rating 120V: 35% @ 120A(Rated @ 40° C)

Output Range 240V: 20-200A/14V-24V (Pulse). Minimum output for non- pulse = 60A

Duty Cycle Rating 240V: 35% @ 200A (Rated @ 40°C)

Pulse Types: Single and Double (Twin/Pulse on Pulse Type)

Burn Back Time -50% to 50%

Inductance: -99% to 50%

Spot Timer: Yes, adjustable

Stitch Timer: Yes, adjustable

Soft Start: Yes, adjustable

PreFlow Timer: Yes, adjustable

Post Flow Timer: Yes, adjustable

Trigger modes: 2T, 4T, S2T, S4T, CPot, Spot



TIG:

Output Range 120V: 10-125A .

Output Range 240V: 10-200A

Duty Cycle Rating 120V: 35% @ 120A(Rated @ 40° C)

Duty Cycle Rating 240V: 35% @ 2000A(Rated @ 40° C)

Pulse: .1-99Hz with 5-95% Balance Ratio

Qty. 1 MIG Ar gas regulator

Stick (not recommended for E6010)

Output range 120V: 20-100A

Output Range 240V: 20-160A

Duty Cycle Rating 120V: 35% @ 100A(Rated @ 40° C)

Duty Cycle Rating 240V: 35% @  160A(Rated @ 40° C)

Arc Force Control: Yes

Hot Start Timer: Yes

Hot Start Intensity: Yes

Minimum/Maximum Capability (MIG/TIG):

Notice: Minimum/Maximum figures are based on industry "best practices" for single pass welds. Maximum multi-pass rating is based of practical maximum limit figuring duty cycle and standard practices.

Minimum: 24 Gauge

Maximum 120V: 1/8"

Maximum 240V: 3/16"

Maximum Multi-Pass: 3/8"

Stick: (Based on electrode size)

120V: 1/16" to 3/32" diameter electrode (depending upon rod type)

240V: 1/16" to 1/8" and 5/32" diameter electrode (depending upon rod type)

Features:

DC MIG, DC TIG, DC Stick

Spool Gun Capable (Spool Gun is Optional)

Options

Spool Gun

Consumables
